Russound ALT-126R Volume Control

RM313.00

The ALT‐126R is a premium wall‐mounted volume control designed to allow easy, intuitive control of the volume of any audio system from single‐room installations to whole‐house distributed audio systems.

The ALT‐126R is a premium wall‐mounted volume control designed to allow easy, intuitive control of the volume of any audio system from single‐room installations to whole‐house distributed audio systems. Its high quality autoformers and other components are designed to attenuate the audio, without adding extra artifacts or taking away from the listening experience in any way. The impedance matching design allows multiple speakers to be connected to the same amplifier without compromising the system design. The UL/CSA certification and limited lifetime warranty bring the peace of mind that demanding customers desire in their installed audio systems.



Features

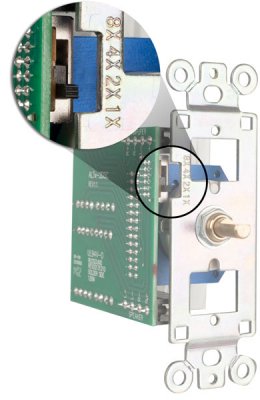

  •  Easy access impedance switch behind front plate
  • 126W peak, 42W RMS continuous
  • Selects 12 steps including off
  • Accepts up to 12AWG cable

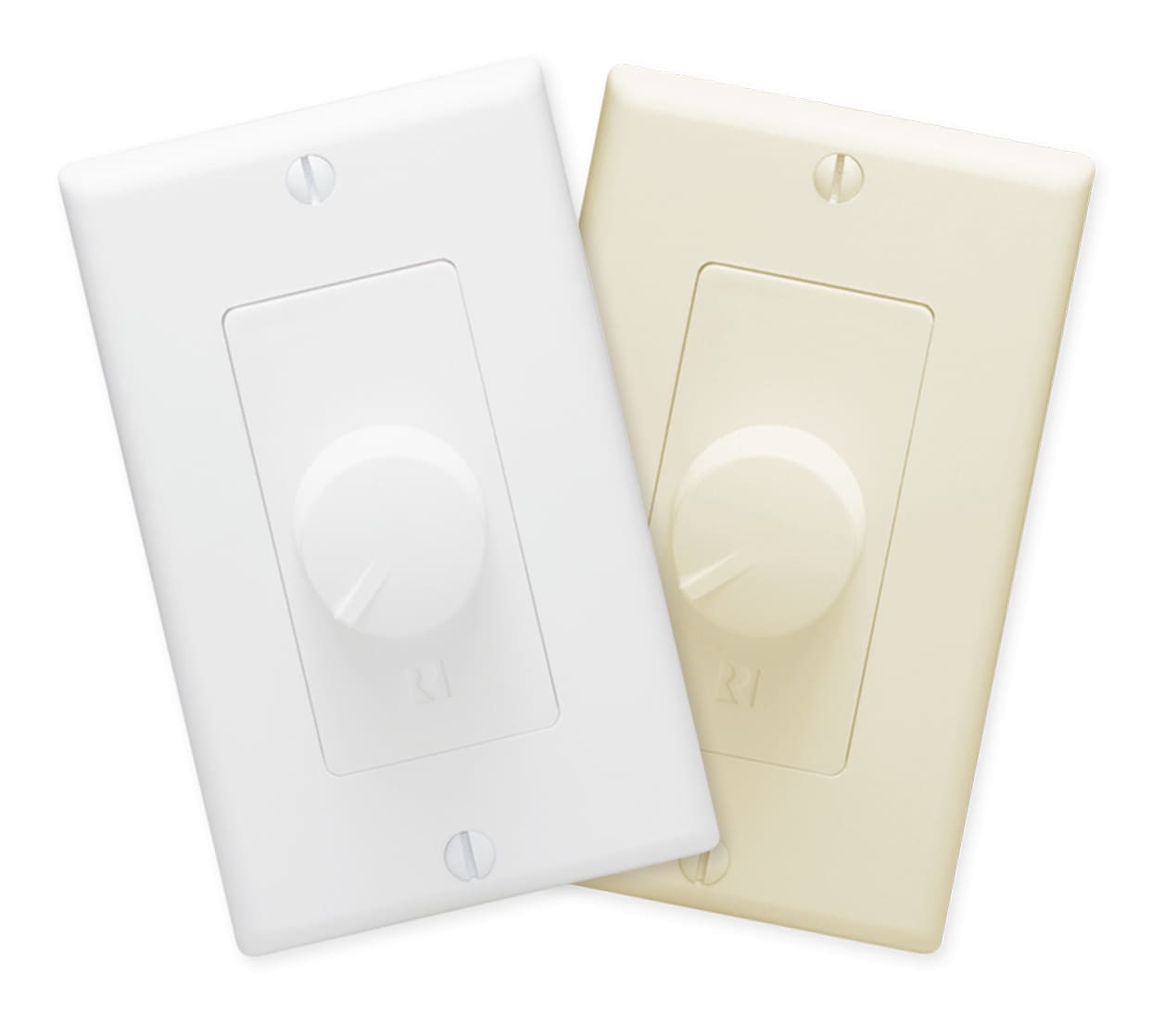

  • Includes both white and light almond plates and knobs
  • Lifetime warranty

Specifications

Specification Details
Shipping Dimensions 7.0″ (W) x 3.0″ (H) x 6.0″ (D) / (17.8 x 7.6 x 15.2 cm)
Shipping Weight 2.0 lbs (0.45 kg)
Frequency Response 20Hz – 20kHz, +/-1.0/-0.5 dB at rated power
Impedance 4 ohms minimum
Impedance Matching Type Autoformer based
Max Wire Size 12 AWG (2.4 mm)
Power Handling 126W max; 42W RMS continuous (per channel)
Speaker Connection(s) 4-pole screw down accepts up to 12 gauge cable
Volume Control 12 steps including Off; total attenuation 48 dB
Weight 0.45 kg
Dimensions 15.2 × 17.8 × 7.6 cm
Warranty

1 year
