In-Wall Perfection

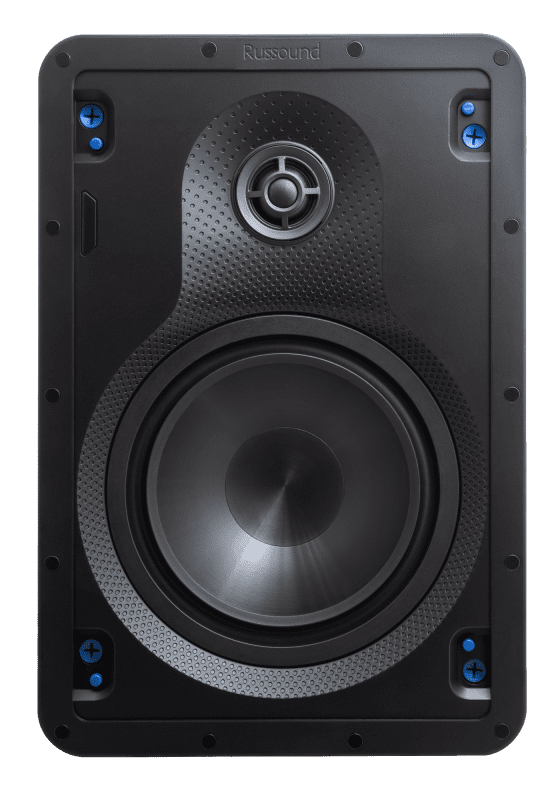

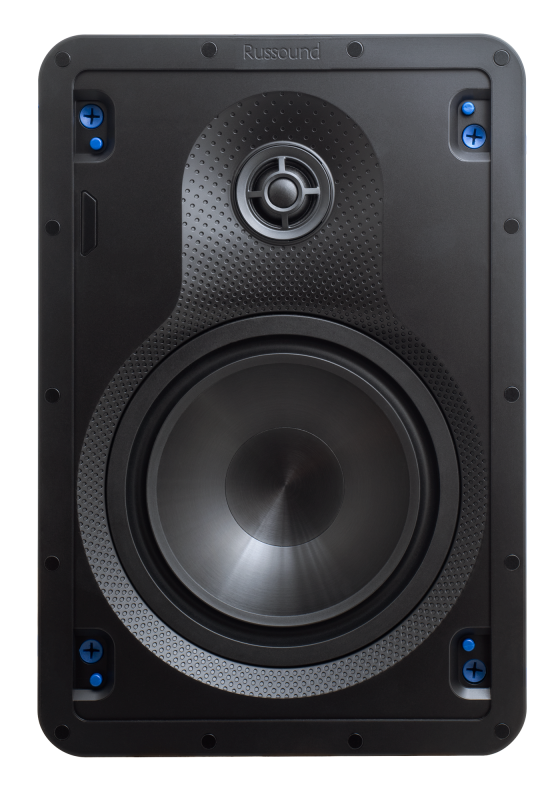

The IW-620 is the perfect in-wall choice for using in all of the primary listening areas of the home. From the kitchen to the living room to the master bedroom, the IW-620 is a speaker that you’ll spend hours and hours listening to. The injection-molded polypropylene cone gives detailed bass response and the 1″ pivoting silk tweeter can be aimed at your favorite listening spot. The integrated one-piece baffle / woofer basket adds enhanced rigidity and complements the deep bass sound. The IW-620 is acoustically matched to the in-ceiling speakers the IC-620 and the IC-820 so you can mix and match with these two speaker sizes as needed. The IW-620 uses the patented SwiftLock® by Swarm tool-less installation system which lets the speaker be installed quickly and easily with the simple press of a button at each of the four mounting dogs.
Features
- The perfect choice for all primary listening areas of the home
- Swiftlock® tool-less quick and easy installation
- Integrated one-piece baffle / woofer basket design for enhanced rigidity and more efficient bass
- Paintable edgeless grilles blend seamlessly into any décor
- Powerful neodymium grille magnets for easy and secure attachment
Specifications
| Specification | Details |
|---|---|
| Type | Two-way in-wall |
| Shipping Dimensions (Pair) | H=10.39″ (26.4 cm) x W=9.76″ (24.8 cm) x L=14.41″ (36.6 cm) |
| Shipping Weight (Pair) | 9.6 lbs |
| Cutout Dimensions | H=11.75″ (29.85 cm) x W=7.64″ (19.4 cm) |
| Frequency Response | 47 Hz – 20 kHz |
| Impedance | 8 ohms |
| Magnet Structure | 13 oz (0.383 kg) |
| Mounting Depth | 3.63″ (9.21 cm) |
| Overall Dimensions | H=12.81″ (32.54 cm) x W=8.71″ (22.13 cm) |
| Recommended Power | 5 – 100 watts |
| Sensitivity | 90 dB @ 1w/1m |
| Tweeter | 1” / (25 mm) Pivoting Silk |
| Woofer | 6.5” / (16.51 cm) Injection-Molded Polypropylene cone |
