Dual monaural circuit design with three transformers and six selectable output patterns

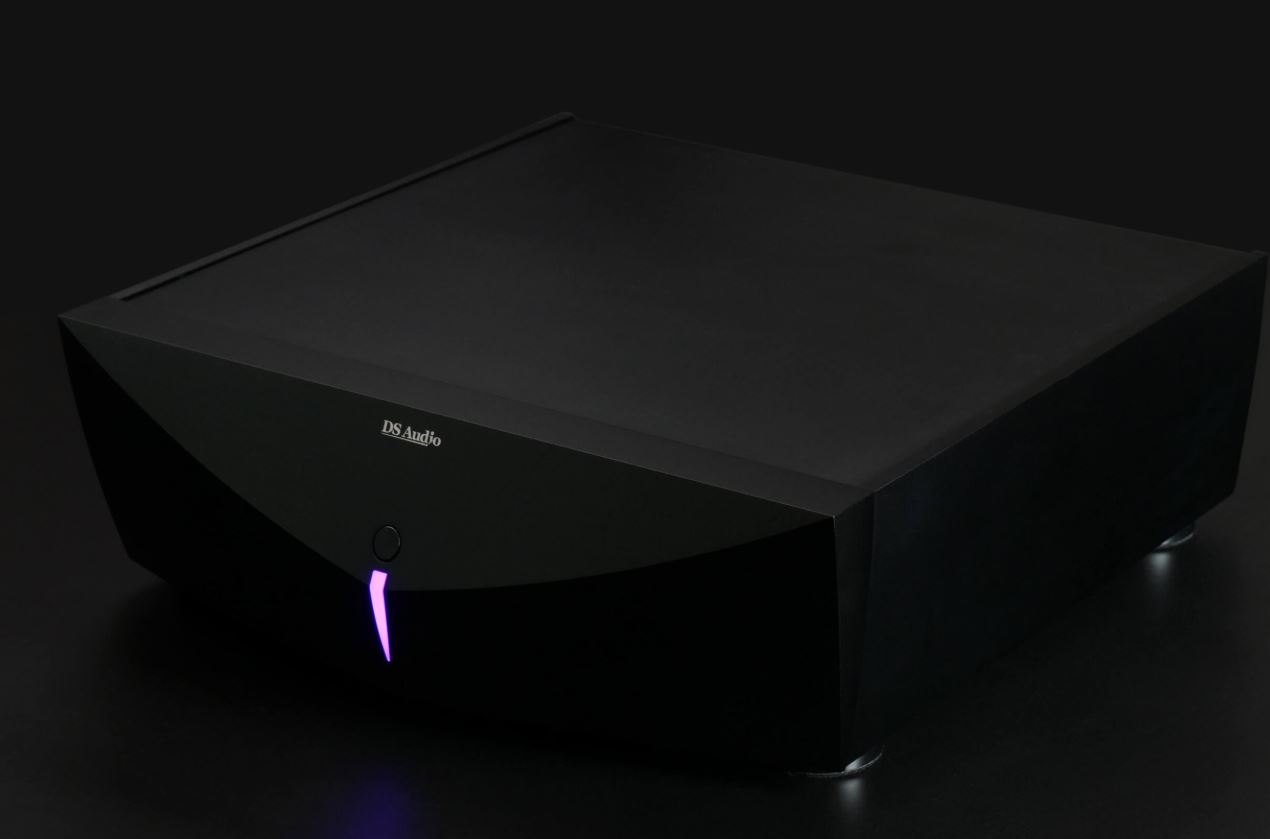

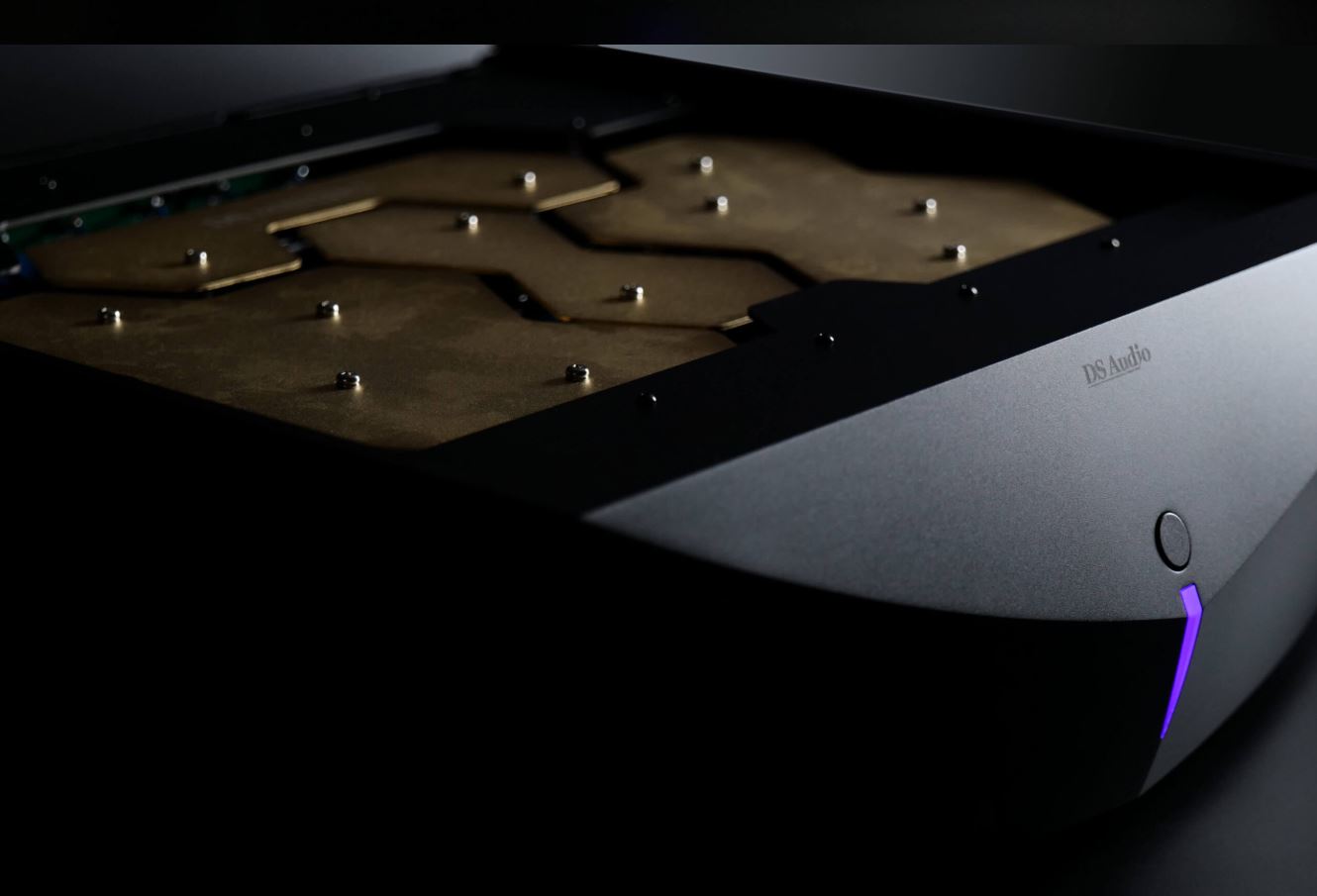

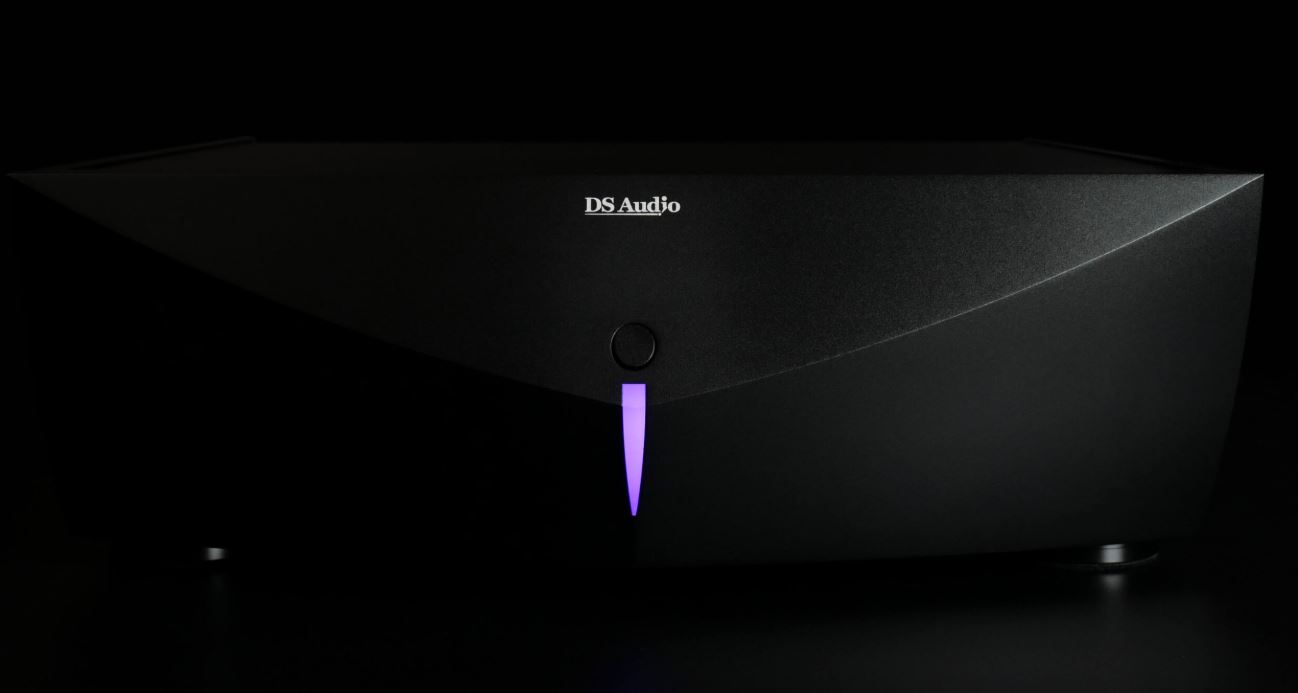

The DS Master3 equalizer is a dual monaural circuit design with three transformers and completely independent L-channel and R-channel circuits. The power supply has been overwhelmingly strengthened to enable deeper, richer low-frequency expression. The DS Master3 equalizer has balanced and unbalanced outputs, and the low-frequency cutoff frequency can be selected from six different options.
Hand-made in Japan circuit board
Every component part used in our products is tested and evaluated by our expert Japanese technicians. In addition to using a specially printed circuit board, the twist-connection of the component legs is further evidence of DS Audio’s excellent attention to detail. Each and every product is hand-made and quality assured by our skilled engineers.
Output voltage : 700mV(1kHz)
Output impedance : RCA 120Ω XLR 120Ω
Pre amp input impedance : More than 10kΩ
Input terminal : RCA terminal
Output terminal : RCA terminal×3, XLR terminal×3
Size : W45.2cm×H15.3cm×D48.4cm
Weight : 23kg
