Bowers & Wilkins 805 D4 Signature Bookshelf Speaker

RM79,599.00

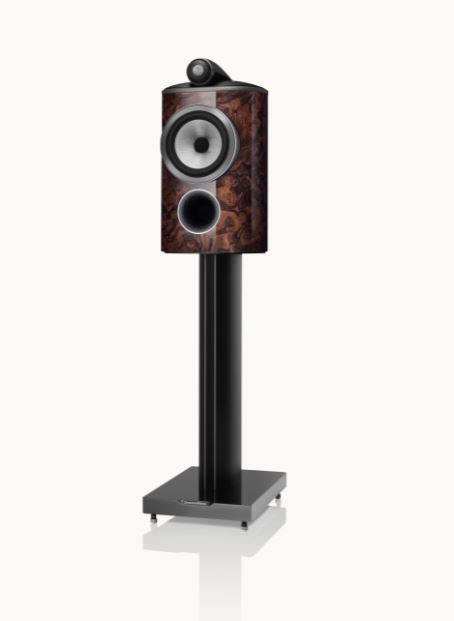

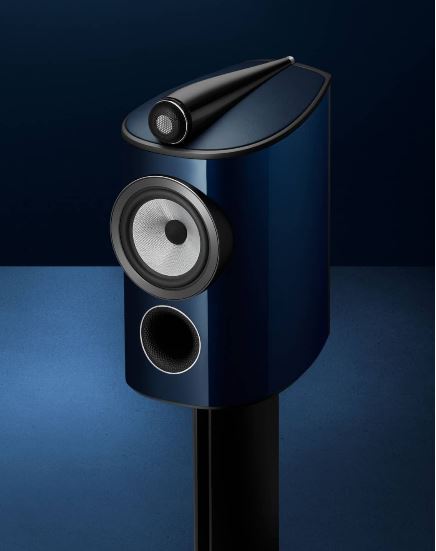

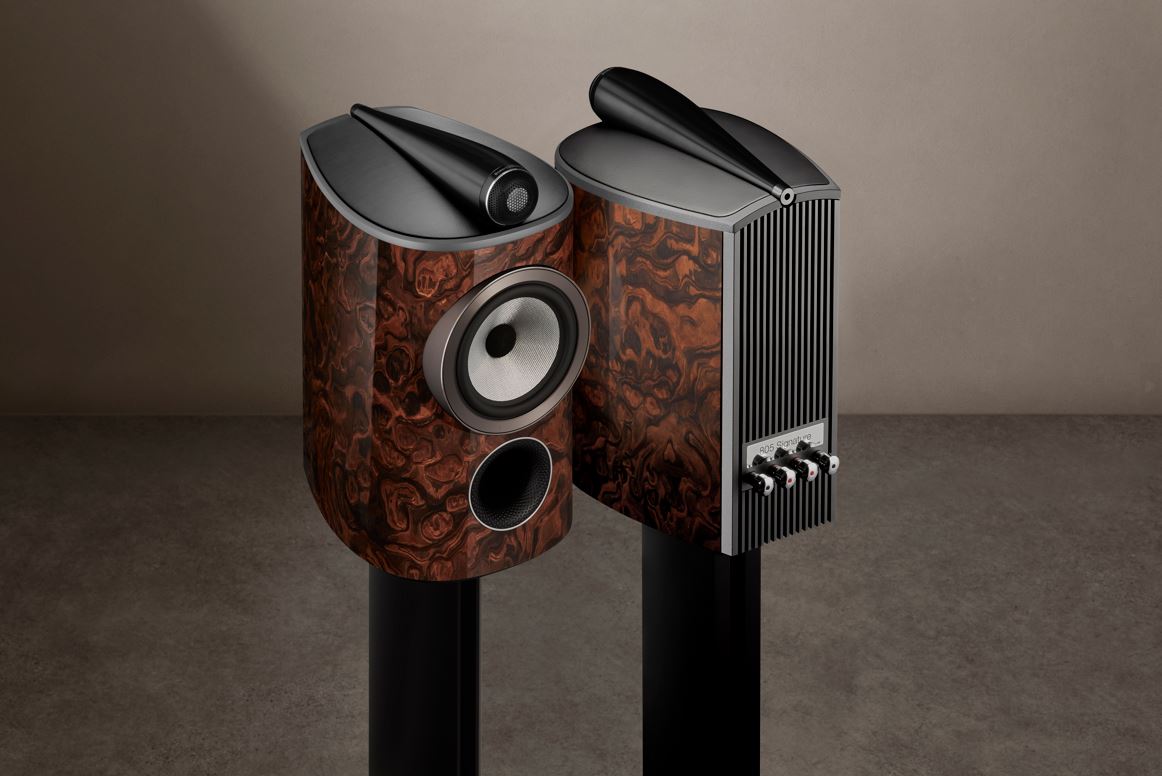

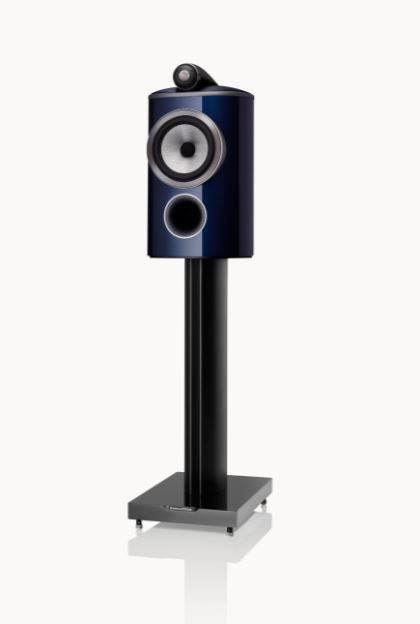

The 805 D4 Signature stand-mount loudspeaker is compact and powerful. It features fully optimized technologies, including that all-important Diamond Dome tweeter and Solid Body Tweeter-on-Top. It’s proof positive that small can still be beautiful.

Finished : California burl Gloss, Midnight Blue Metallic



The 805 D4 Signature stand-mount loudspeaker features optimised technologies, including that all-important Diamond Dome tweeter and Solid Body Tweeter-on-Top, an all-new tweeter grille, and upgraded crossover.

Diamond Dome tweeter

One of our most significant accomplishments over the past two decades, the ultra-stiff, supremely accurate Diamond Dome tweeter is the perfect combination of low mass, exceptional stiffness, and outstanding accuracy. Fifteen years after we introduced it, we haven’t found a better tweeter dome technology.

All-new tweeter grille

Our Solid Body Tweeter-on-Top housing features an elongated form with a longer tube-loading system and an all-new design of tweeter grille, producing an even more free and open sound with high frequencies

Upgraded crossover

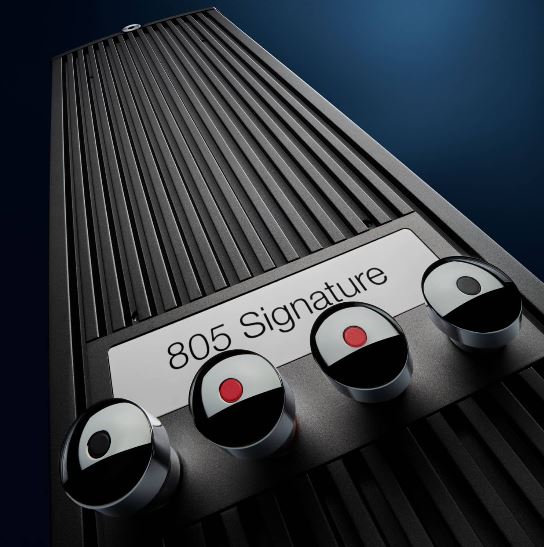

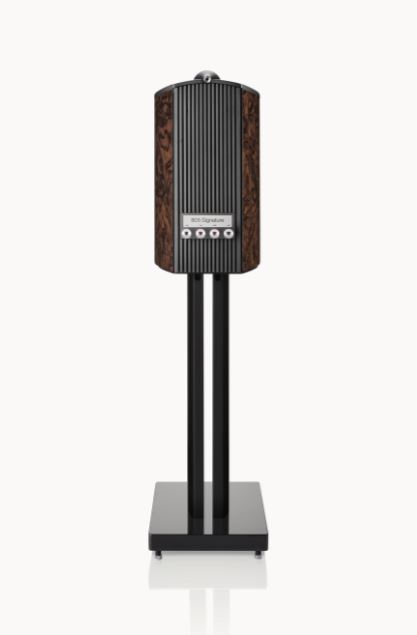

Our 805 D4 Signature uses upgraded rear-mounted crossover designs mounted on stiff aluminum spines. This isolates the sensitive capacitors from the unwanted effects of air pressure within the enclosure and makes for a very effective heatsink to ensure optimum performance when in use.

Continuum™ Cone

Thanks to its composite construction, the Continuum™ Cone avoids the abrupt transitions in behaviour that can impair the performance of a conventional drive unit. The result is a more open, neutral performance from the 805 D4 Signature. Voices and instruments can be heard with precision and transparency.

Technical features Diamond tweeter
Solid Body Tweeter-on-Top
Continuum™ cone bass/midrange
Matrix™
Anti-Resonance plug
Flowport™
Description 2-way vented-box system
Drive units 1x ø25mm (1in) Diamond Dome high-frequency
1x ø165mm (6.5in) Continuum™ cone bass/midrange
Frequency range -6dB 34Hz to 35kHz
Frequency response 42Hz to 28kHz ±3dB
Sensitivity 88dB spl (2.83Vrms, 1m)
Harmonic distortion 2nd and 3rd harmonics (90dB, 1m on axis)
<1 % 90Hz – 20kHz
<0.3% 120Hz – 20kHz
Nominal impedance 8Ω (minimum 4.6Ω)
Weight 15.55 kg
Dimensions 37.3 × 24.0 × 44.0 cm
Warranty

1 year
