CD transport and D/A converter

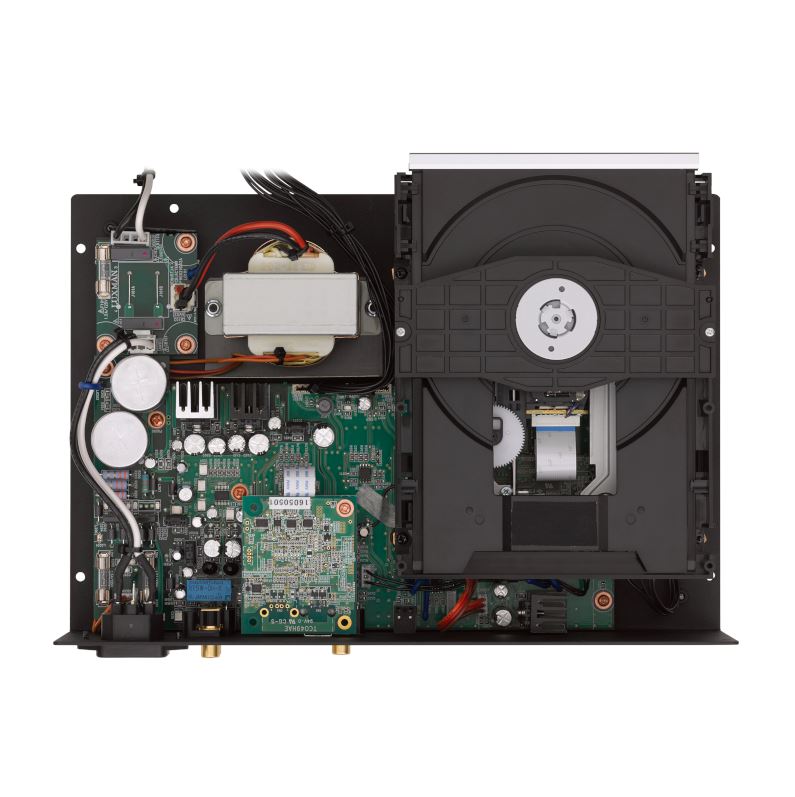

The D-N150 has the same CD transport as LUXMAN’s highly regarded D-380. Carefully auditioned parts include the power transformer, filtering capacitors, Schottky barrier diodes and LUXMAN’s own Oxygen Free Copper (OFC) wire. The Texas Instruments PCM5102A digital-to-analog converter helps deliver a signal-to-noise ratio of 110 dB, presenting music against a background very close to absolute silence.

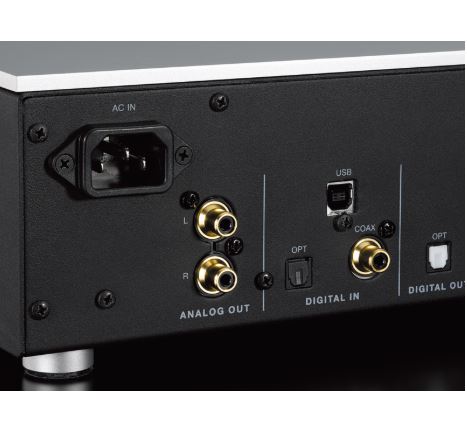

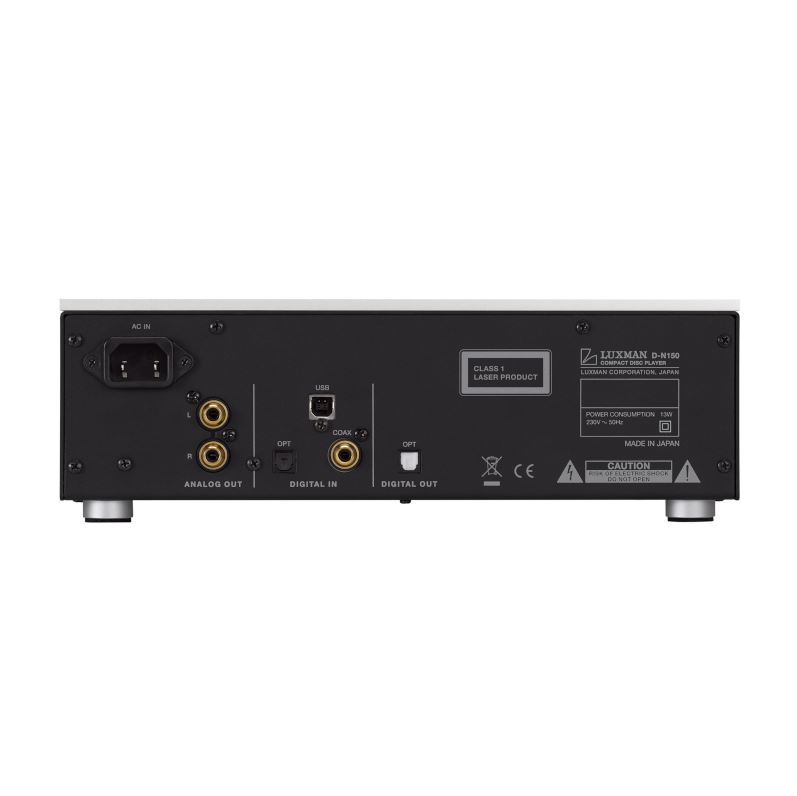

Coax, optical and USB input with Bulk Pet® transfer
You can take advantage of the digital-to-analog converter built into the D-N150 to reproduce external sources. Coaxial and optical inputs accept S/PDIF signals up to 192 kHz/24 bits, while the USB input accepts personal computer PCM signals up to 192 kHz/32 bits. The D-N150 is the first LUXMAN product to support Bulk Pet ®* transmission in addition to conventional, isochronous USB transfer. This achieves exceptional sound by reducing the processing load on the DAC. Optical output empowers you to use the D-N150 as a single DAC hub.*Bulk Pet® is a registered trademark of INTERFACE Co.,LTD.
High-grade aluminum remote control
The aluminum remote control feels substantial in your hand. This remote operates not only the D-N150 digital player but also volume on the matching SQ-N150 amplifier.

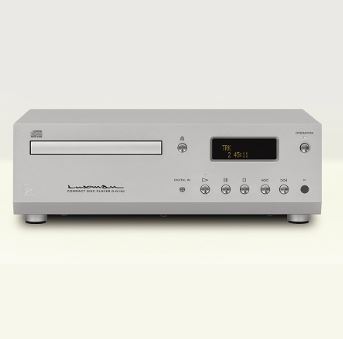

Understated design
The D-N150 has compact “A4” footprint, just 210 x 297 mm (8-1/4 x 11-3/4 inches), not including projecting parts. The 5 mm thick aluminum chassis features an elegant, blasted white finish. Hairline finished controls provide a subtle contrast between white and silver.
Spec
Applicable disc : 2channel CD, CD-R
Supported sampling frequencies : USB input : 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz,
192kHz(16, 24, 32bits), COAX/OPT input : 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz,
192kHz (16, 20, 24bits)
Analog output voltage / impedance : 2.1V/300Ω
Frequency response : CD :5Hz to 20kHz (+0, -0.5dB), COAX/OPT/USB :5Hz to 50kHz (+0, -3.0dB)
Total harmonic distortion : 0.005%
S/N ratio (IHF-A) : 110dB
Power supply : 230V~(50Hz) / 115V~(60Hz)
Power consumption : 13W
External dimensions : 297(W) x 98(H) x 222(D) mm, 4mm front panel knob of and 8mm rear panel
terminals are included in the depth measurement
Net weight : 5.0kg(main unit)
Accessories : Remote control(RD-27),Power cable
